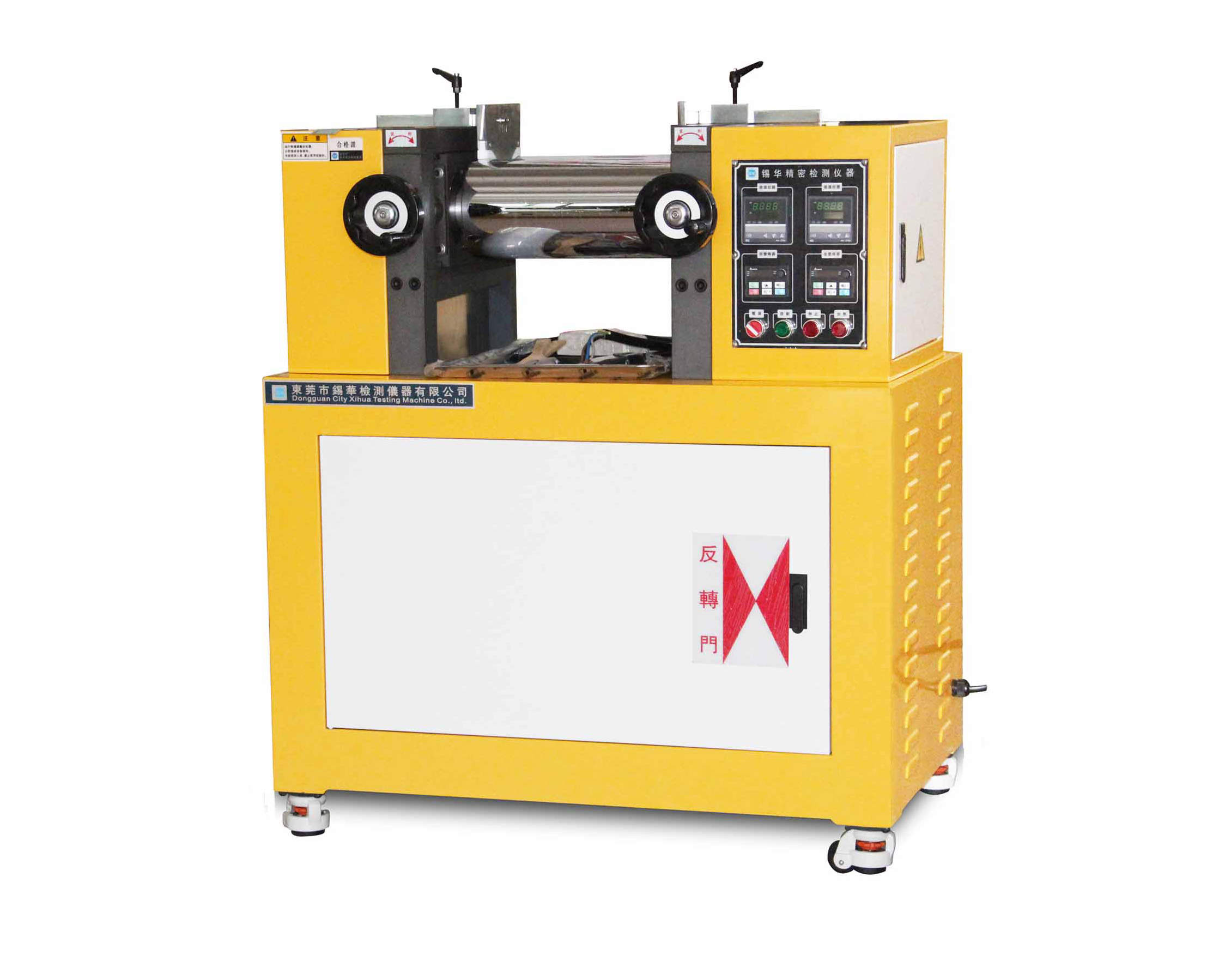

XH-401開煉機 XH-401 Two Roll Mill
簡介 Introduction：
適用于橡膠、塑膠原料、顏料、色母粒等高分子聚合物混煉分散。
Suitable for mixing and dispersing polymers such as rubber, plastic raw materials, pigments, masterbatches, etc.
應用范圍： Applications
新產品研發、配方優化 ：New product development and formula optimization
產品質量控制和原材料檢測 ：Product quality control and raw material testing
加工性能研究和工藝優化：Processing performance research and process optimization
配方材料共混性能檢測 ：Formulation material blending performance test
教學科研應用：Teaching and research application
技術參數 (Technical Parameters)：
型號 Model No. | XH-401A | XH-401B | XH-401C |
輥筒轉速 Roller speed | 定速 Fixed speed | 單調頻 Single frequency inverter | 雙調頻 Dual frequency inverter |
控制方式 Control Mode | 按鍵式 PID control | ||
輥筒尺寸 Size of roll | 120×350mm或指定(or customized) | ||
加熱方式 Heating Mode | 電加熱 electrical heating | ||
調距方式 Roll gap adjustment | 手動調節或電動調距 Manual or electric gap adjustment | ||
安全裝置 Safety device | 反轉停止 Reverse stop | ||
電機功率 Motor Power | 0.75kw或指定×1臺 0.75kW or customized*1 | 0.75kw或指定×2臺 0.75kW or customized*2 | |
體積 Volume（W×D×H） | 1100mm×560mm×<1150mm | ||
重量 Weight | 400kg | 450kg | |
電源 Power Supply | 3∮，AC380V | 3∮，AC380V | 3∮，AC380V |
特殊型號可根據客戶要求設計制作。
Special models can be designed according to customers’ requirements.
